Product details
The body adopts a three-return wet-back internal combustion structure. The centrally arranged combustion chamber is composed of furnace gallbladder and fire box, which has good absorption heat exchange and thermal expansion. The second and third return flue pipes are evenly arranged in the inner and outer layers along the center, so that the heat exchange and absorption are uniform and stable. The front and rear smoke boxes adopt a detachable structure, which is convenient for the maintenance and cleaning of the boiler smoke chamber and smoke pipes. Large boilers use advanced technology such as corrugated furnace and threaded smoke pipes to further improve efficiency and structural strength. There is an inspection hole at the back of the boiler, from which the furnace can be accessed for inspection and maintenance; the inspection hole of the large-capacity boiler is provided with an explosion-proof device. The upper part of the boiler is provided with a water outlet/return port, a water supply port and an air communication port, and the relevant positions refer to the previous structural diagram. There are condensed water discharge ports at the bottom of the front and rear smoke boxes to remove the condensed water from the flue gas in time. The boiler outsourcing is made of high-quality glass wool with aluminum foil, which has good thermal insulation effect. The outer layer adopts a 1.0mm color board, which is beautiful and practical, and the base is a grooved beam structure, which is convenient for the boiler to be in place. Large-capacity boilers are equipped with platform escalators, which are convenient for installation and maintenance.
Features
In general understanding, a boiler is a piece of equipment that is installed and fixed in a boiler room with a traditional structure and cannot be moved. Such boilers cannot adapt to the heating needs of mobile units and field operations. In order to solve this demand, the boiler industry has added a new member-mobile container boiler room.

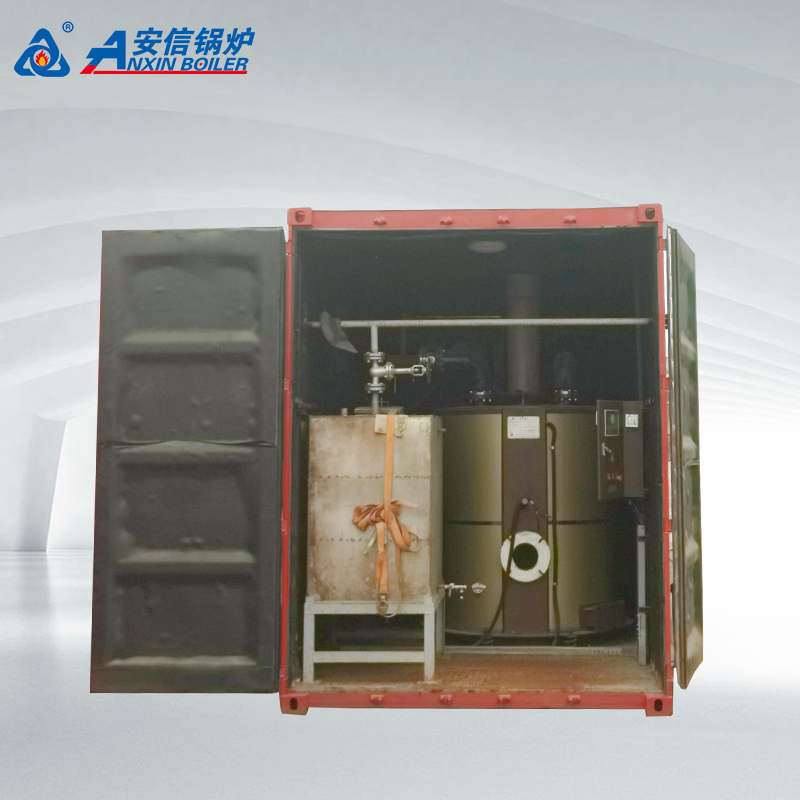

The mobile container boiler room is to fix all auxiliary equipment such as boiler, control system, soft water processor, soft water tank, circulating water pump, water distribution cylinder, fuel tank and instrument valve, and realize the mobility of the overall equipment of the boiler room. It can run fully automatically when it needs to be connected to the power supply. The display instrument and control system of the boiler are all completed in the container. The container is equipped with lighting, doors, windows, drainage pipes and other facilities. With the characteristics of fast movement, it can be transported by car to various complex sites, such as oil fields, road construction sites, bridge construction sites, mobile units, field operations and other places that require boilers. The auxiliary equipment of the container boiler is complete, the installation is simple and fast, and the user only needs to assemble the water supply, steam supply pipeline and power supply at the place of use. Neat and beautiful appearance, durable.
Containerized hot water boiler equipment is widely used in various industries of modern industry to provide power and thermal energy for production and life. At the same time, with the development of production and society, urban heating is developing towards central heating; the degree of automation of small boilers has also been continuously improved to meet the social requirements for environmental performance and performance of industrial boiler equipment. The manufacture of boiler products is mainly reflected in the development of various large-capacity boilers, fast-assembled boilers and fully automatic boilers. But at present, although there are quick-installed boilers, a boiler room needs to be built and professional installation is required. The construction period is still long and cannot be used immediately.
The purpose of the invention of the container hot water boiler is to solve this problem. The container house type CWNS series fuel (gas) hot water boiler is a new product of the whole boiler. The boiler and its ancillary equipment are produced in the factory and assembled into a container room boiler, which is quickly assembled and delivered. The boiler site installation quantity is reduced, and its quality is guaranteed . Overcome the shortcomings and deficiencies of the prior art.
Containerized boiler is one such realization. There are containers and boilers. It is characterized in that the container is equipped with a fuel (gas) boiler, a computer control box, a water pump, a water tank, a fuel tank, a burner, a fully automatic water treatment equipment, and a full set of valve instruments. And the facilities in the boiler room, all the equipment connection methods are conventional boiler connection and installation methods. The container is equipped with CWNS series fuel (gas) boiler, 1m3 water tank and 1m3 fuel tank. The fuel tank can be replaced with a gas tank.
The advantage is that the container is equipped with CWNS series fuel (gas) boiler, computer control box, water pump, 1m3 water tank, 1m3 fuel tank, automatic water treatment equipment, a full set of valve instruments and other boiler room facilities.
The boiler can be transported as a whole when it leaves the factory and during use, and the design and installation process of the traditional boiler room is no longer required. It can be used after connecting with the external pipe network to realize the open-air operation of the boiler. And has the corresponding wind, rain, freezing and anti-corrosion functions.
The combustion equipment adopts an advanced automatic device control system, which is safe and reliable in operation , and is equipped with various safety protection devices. The threaded smoke pipe technology with high efficiency heat exchange is adopted in the furnace, which makes the overall structure of the boiler compact, small in size and light in weight.
This series of products has the characteristics of convenient movement, small footprint and low investment in infrastructure; it can burn a variety of fuels, is easy to maintain, saves energy, reduces consumption, has no pollution, and has a clean and beautiful appearance. It is an ideal environmentally friendly thermal equipment.
Boiler performance characteristics The boiler has a fully automatic operation function. Set the working pressure range according to the needs, and the boiler can be put into automatic operation. During operation, the boiler automatically adds water and stops the pump according to the change of water level; at the same time, with the change of load, the burner can adjust the first-stage and second-stage fire to ensure good load regulation.
With a variety of safety protection functions, the burner is automatically locked when the ignition is unsuccessful at one time . At this time, it is necessary to press the burner to repeat the operation button again. When the flame is suddenly turned off, the burner can also be automatically locked for protection, and it also has the function of oil shortage protection.
For gas boilers, in addition to flameout protection, it also has overpressure, low pressure protection, and leakage safety protection devices. Both oil-fired and gas-fired boilers have the functions of ultra-low water level alarm, furnace shutdown protection, safety valve over-steam pressure start-up function, over-steam pressure interlock protection function, etc.
